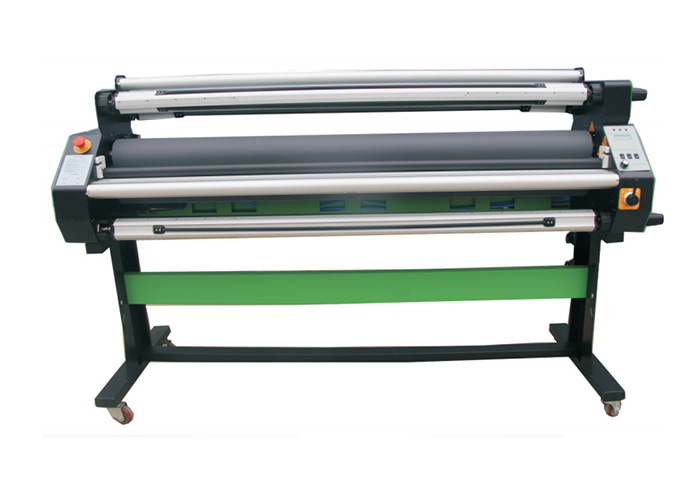

MF1700-M1 PLUS
Single-side Full-auto Heat-assist Cold laminator MF1700-M1 PLUS represent the highest industrial product by Mefu for entry level. It has been the most human and efficiency laminating machine ever. With a laminating and mounting width up to 1630mm(64”), ensures most application possibilities. The basic pneumatic Heat-assist Cold laminator MF1700-M1 PLUS, can fulfill your most of your applications with competitive price. Fully adjustable nip-gap and pressure for precise application, adjust pressure and height by pneumatic, ensures all process easy and simple. This 1630mm(64’’) laminator is a good helper for starter.
| Model | MF1700-M1 PLUS |
| Max width | 1630mm |
| Speed | Up to 6m/min |
| Laminating type | Heat-assist Cold |
| Heating method | Heated Infrared |
| Diameter of upper roller | 120mm |
| Max thickness | 23mm |
| Warm up time | 5-10min |
| Recommended temp range | 40-50°C |
| Max temp | 60°C |
| Fixed Volt | AC110V-220V |
| Fixed power | 1400W |
| Fixed current | 16A |
| Reverse function | Yes |
| Laser safety | Yes |
| Foot pedal switch | Yes |
| Dimensions | 2160×710×720mm |
| N.W | 150kG |
